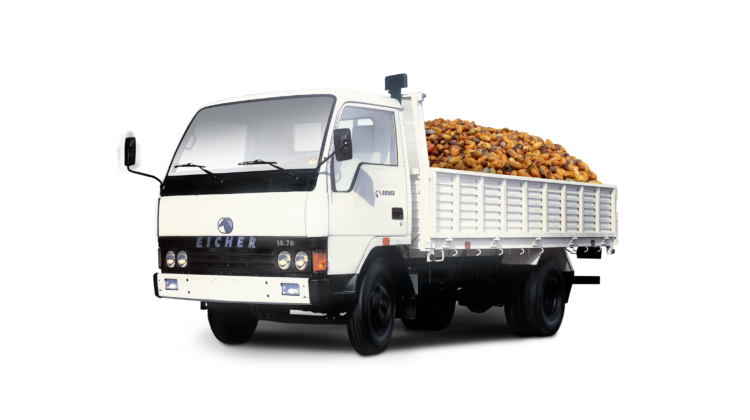

The EICHER 10.70 has HIGH load carrying capacity and its strong aggregates give it much longer life than the other vehicle in its class. It is reputed for its higher fuel efficiency, low maintenance cost, high driving comfort & high resale value and now with E2 plus features.
Salient features of Eicher 10.70 are :
|
|

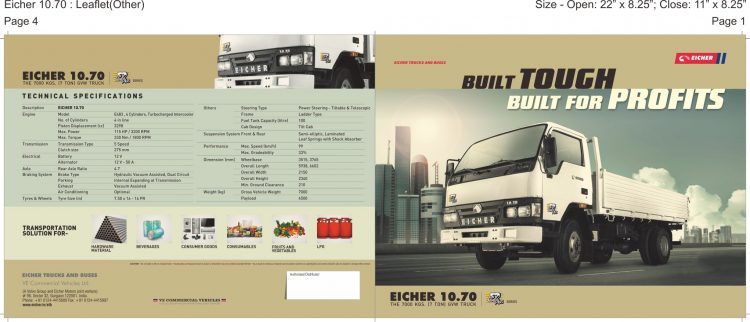

| TECHNICAL SPECIFICATION |
| Model Code |
Eicher 10.70 |
|
| Wheelbase |
2815 mm |
3515 mm |
3765 mm |
| Overall Length (FSD) |
5130 mm |
6030 mm |
6545 mm |
| Overall hight (FSD) |
2340 mm |
2340 mm |
2340 mm |
| Overall Width |
2146 mm |
2146 mm |
2146 mm |
| Ground Clearance |
210 mm |
210 mm |
210 mm |
| GVW |
8250 kgs |
8250 kgs |
8250 kgs |
| Min. Turning Redius |
5.4 m |
6.5 m |
7.2 m |
|
BS II
|
| Engine Model & Type |
E483 TCI- Diesel 4 cylinder, with turbocharger & Intercooler |
| Max. Power |
70 Kw @3200 rpm as per MOST/ CMVR TAP- 115- 116 |
| Max. Torque |
299.5Nm@1440 rpm as per MOST/CMVR TAP-115-116 |
| Air Cleaner |
Dry type with telescopicsnorkel |
| Bore x Stroke |
100×105(mm) |
| Clutch |
275 mm dia. Single dry plate diaphragm type hydraulics assisted. |
| Transmission |
5 forward & 1 reverse. Forward all synchromesh. Reverse constantmesh. Floor mounted gear shift control lever. |
| Frame |
Ladder type ‘C’ channel- rivet-less top face. |
| Front Suspension |
Heavy duty Semi-elliptical laminated leaf spring. Hydraulic double-acting telescopic type shock absorbers. |
| Rear Suspension |
Heavy duty Semi-elliptical laminated leaf spring. |
| Battery |
12V – 70 Ah |
| Alternator |
12V – 50 A |
| Starter |
12V – 2.0 Kw |
| Steering |
Mechanical recirculating ball & nut type. Variable gear ratio
26.5 to 30.5 Tiltable & telescopic steering column.
(Power steering option available.) |
| Service Brake |
Hydraulic vacuum assisted divided line brakes. |
| Parking Brake |
Internal expanding type at the rear of transmission. |
| Exhaust Brake |
Vacuum assisted, automatic type installed as std. fitment. |
| Tyres |
Front2, Rear4, Spare 1. |
| Front |
7.50×16 |
| Rear |
7.50×16 |
|
